Park Gwyn, Cornwall

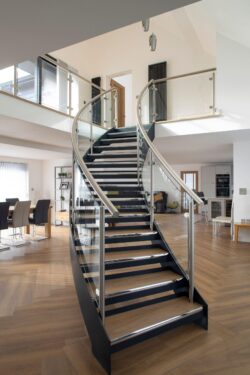

This modern staircase design was for a new build property in Cornwall.

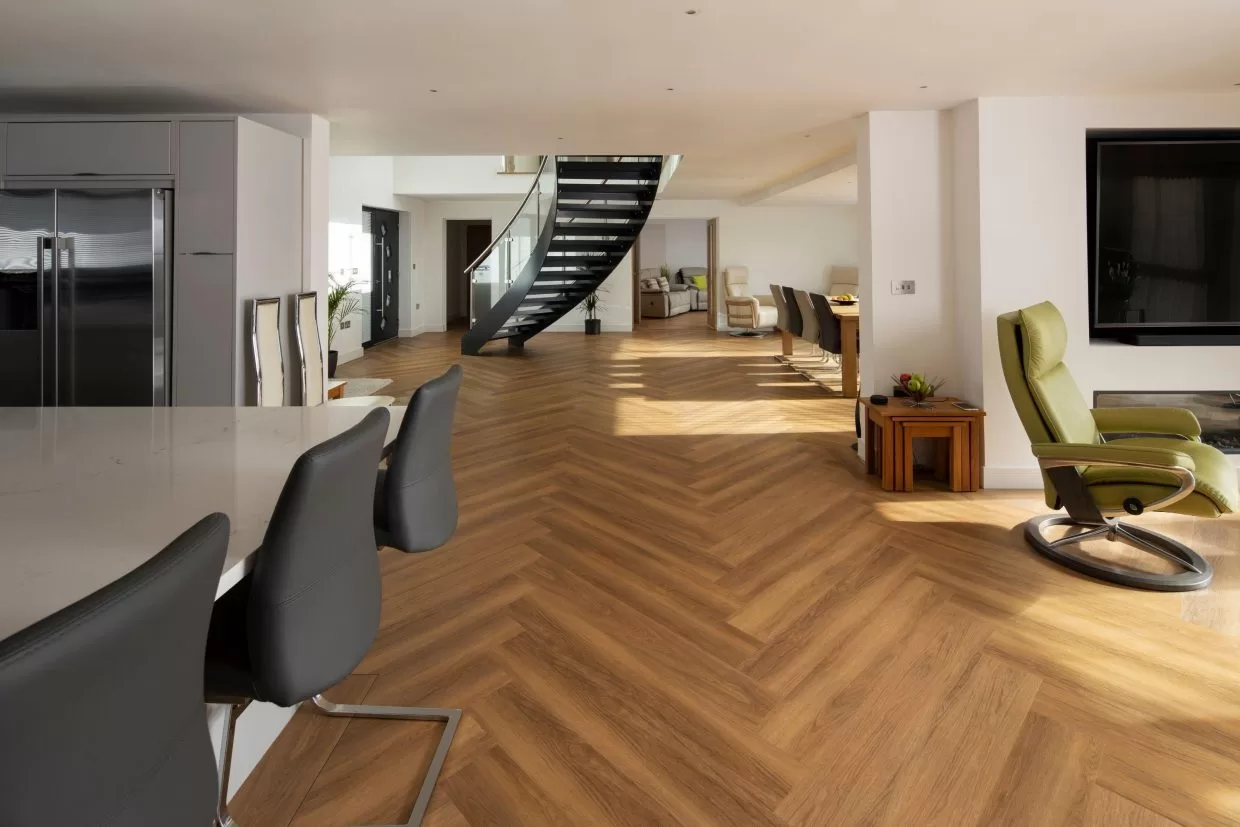

The contemporary home used the curved staircase we created and installed as a centrepiece in the open plan design of the property.

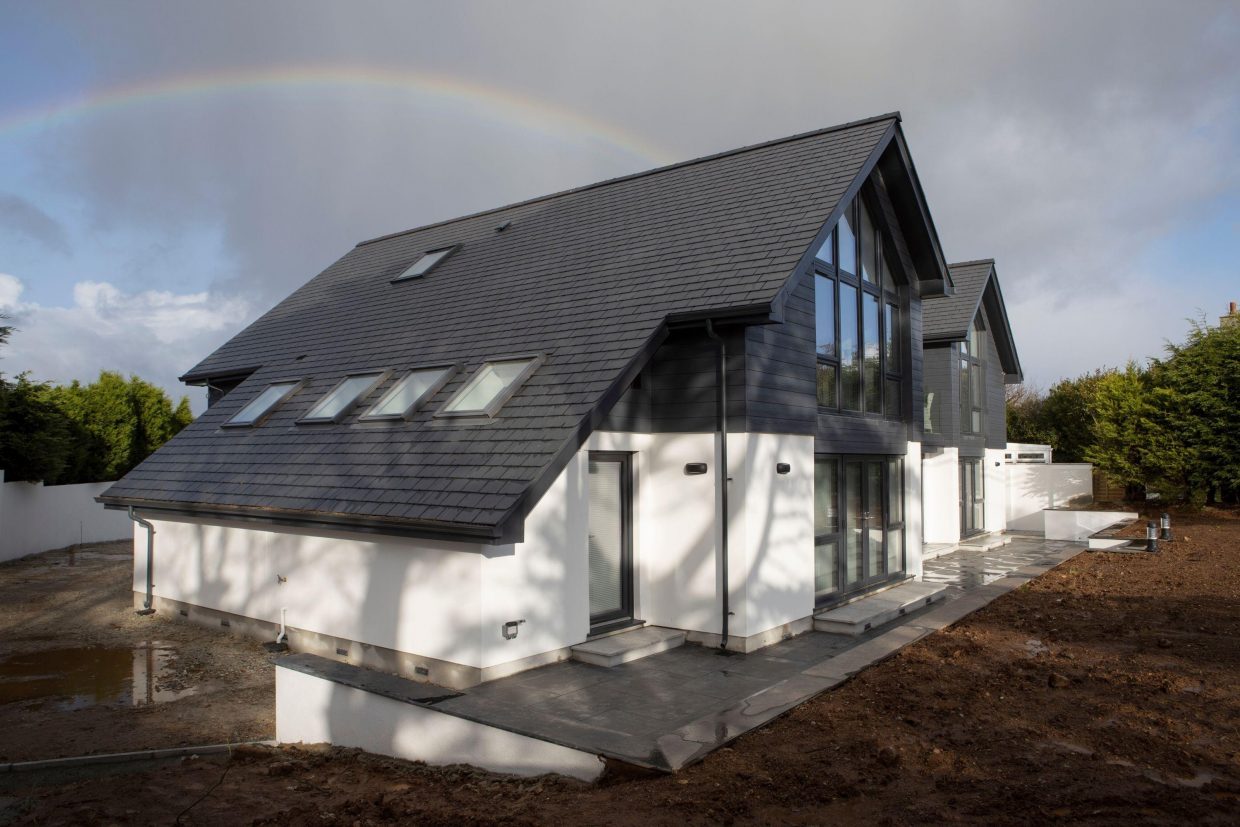

We installed this bespoke staircase in a new build dormer bungalow. A 390 square metre timber frame property with many spectacular features such as vaulted ceilings, a frameless glass balcony and our feature helical staircase.

A modern interior design feel has been created by the combination of glass, anthracite grey RAL 7016, stainless steel and wood effect Amtico vinyl flooring with a herringbone pattern, which is used throughout, including on the stair treads.

We are really pleased with the way the stunning combination of modern materials and paint finishes creates a dramatic effect and how the staircase integrates seamlessly with the rest of the house.

Project

Park Gywn, Cornwall

Requirement

Bespoke curved staircase

Architect

R A Design

Contractor

Burley Construction

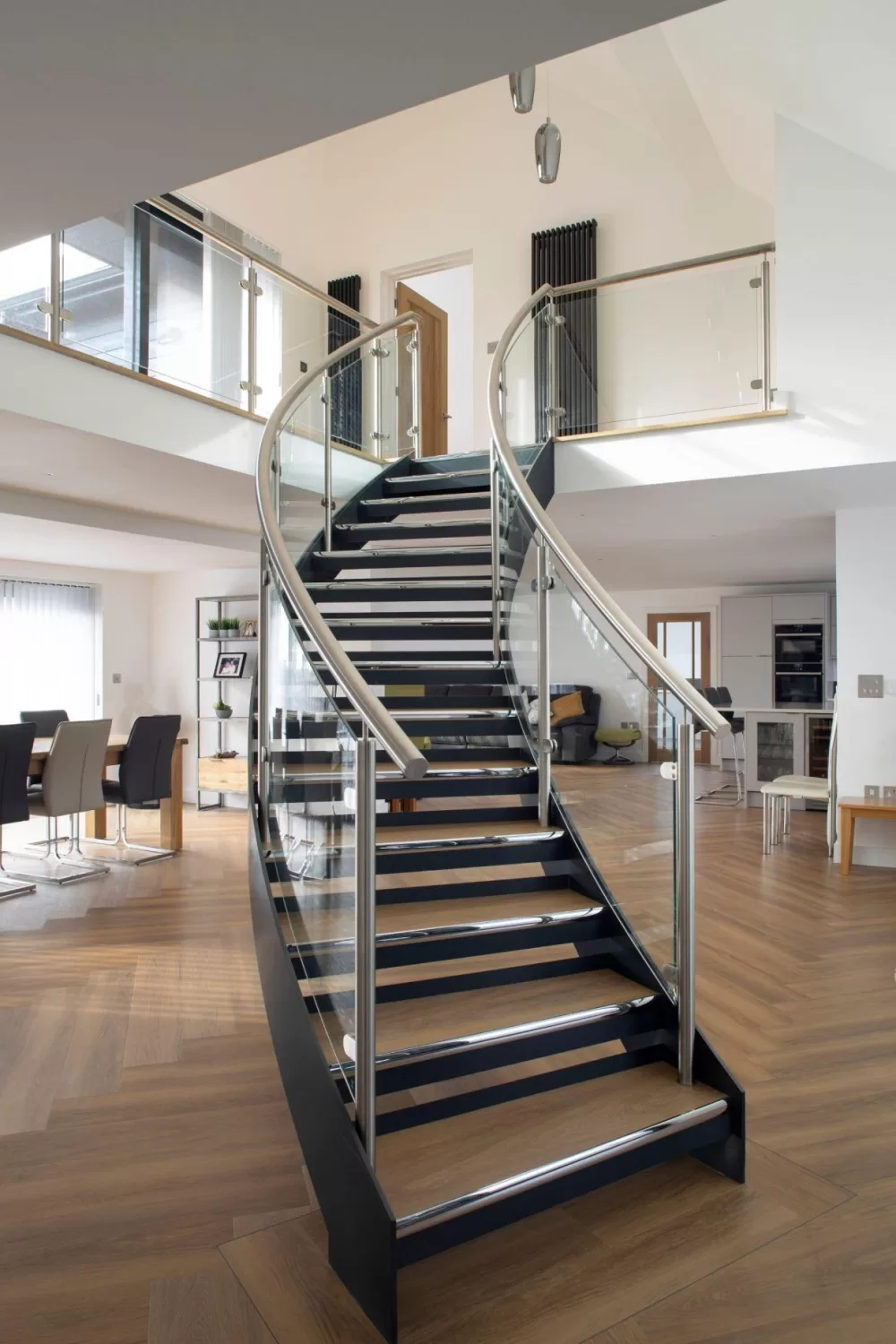

Park Gwyn Portrait 2000 x 3000 200109 094551

Floor to floor height

2596mm

Staircase Category

B - private stair

Risers

14 @ 185.4mm

Treads

13 x 976mm wide tray treads in mild steel, powder coated treadpans in RAL 7016 (Anthracite Grey)

Clear Tread Width

865mm

Balustrade

Handrail supported by 42 diameter uprights to every third tread with toughened glass infill panels and satin polished stainless steel metalwork

Stringer

300m x 12mm thick flat plate side stringers wet spray painted due to fabrication method to RAL 7016 (Anthracite Grey)

Handrails

50mm diameter in satin polished stainless steel

Additional

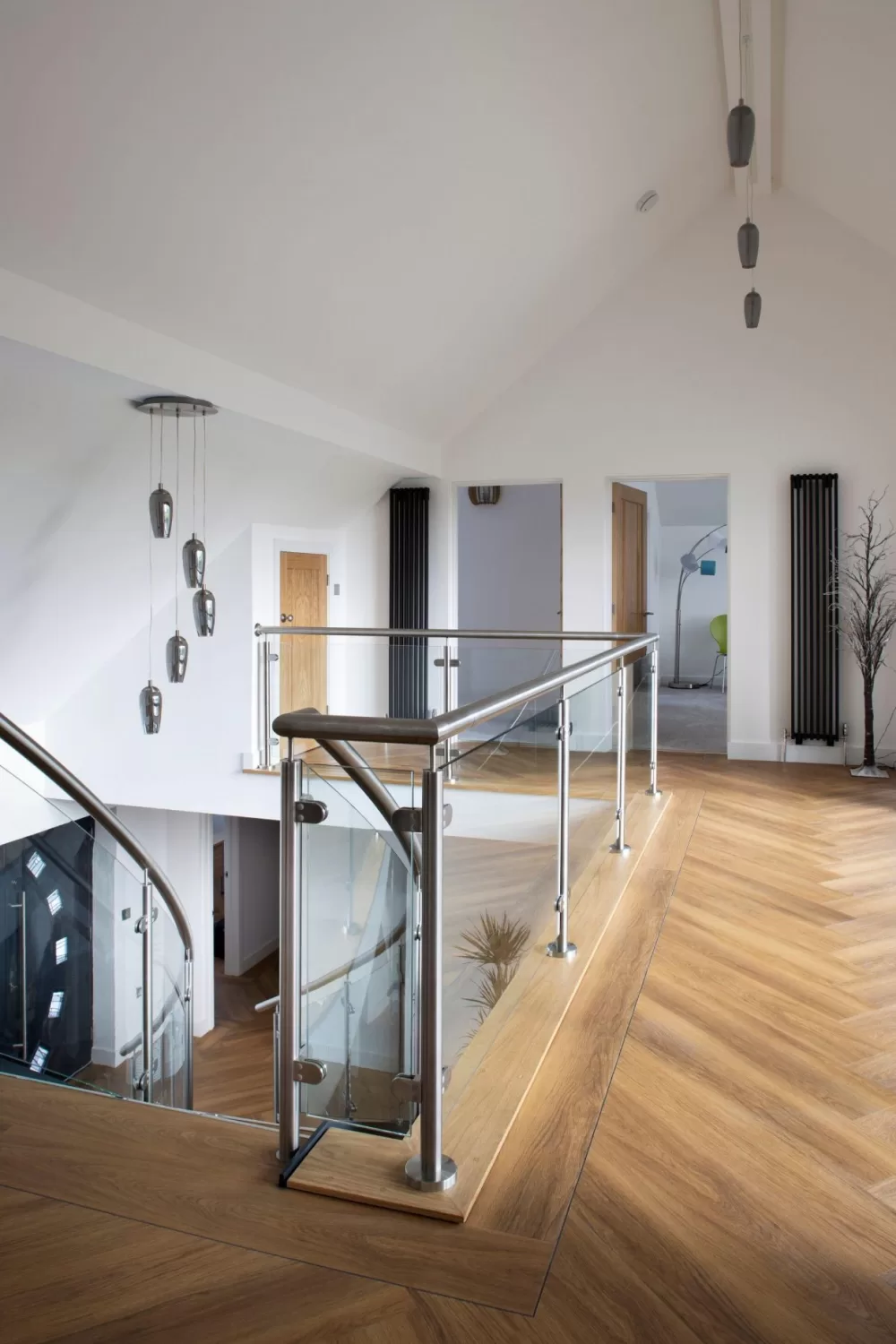

Matching balustrade to stairwell and landing area

Curved staircase

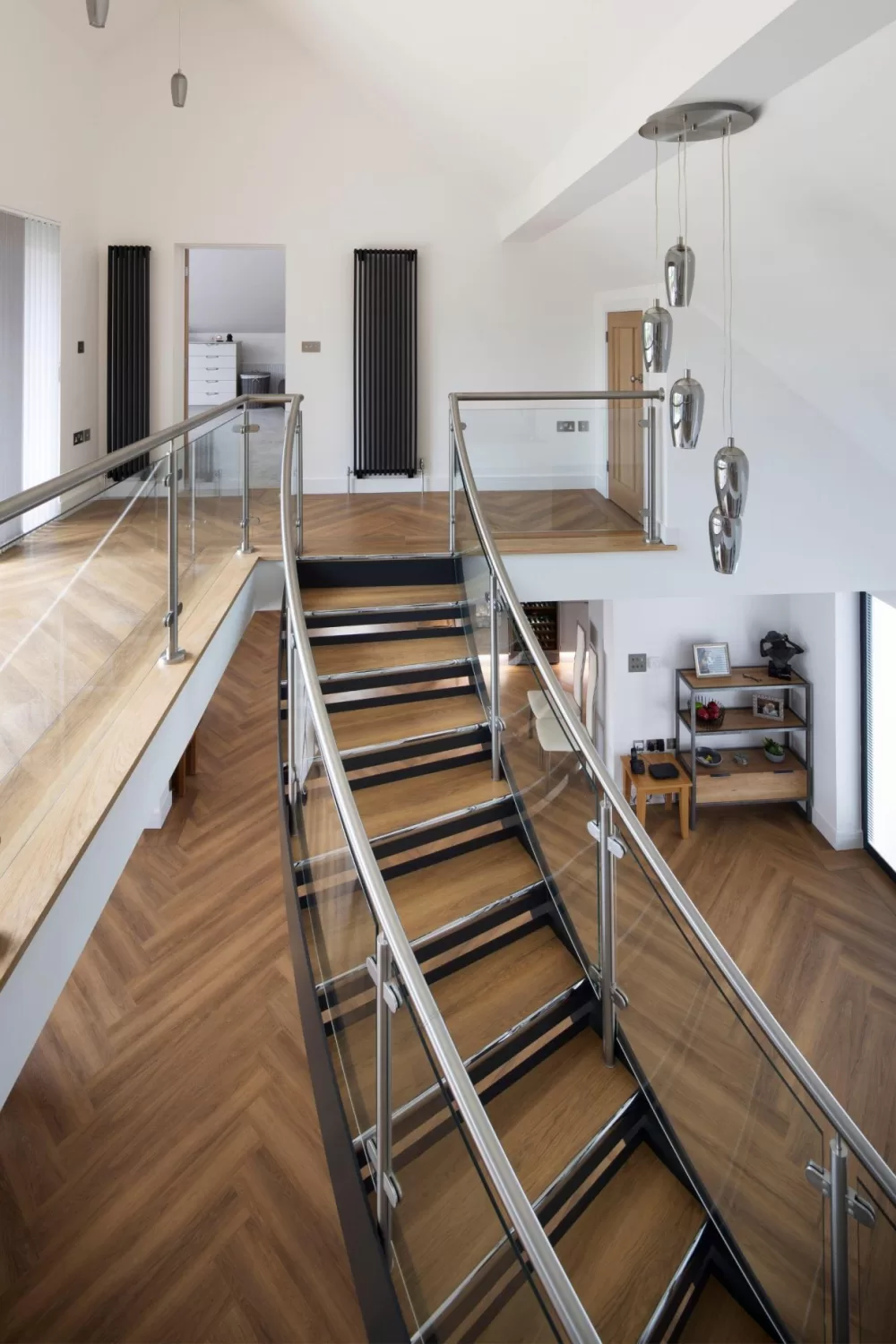

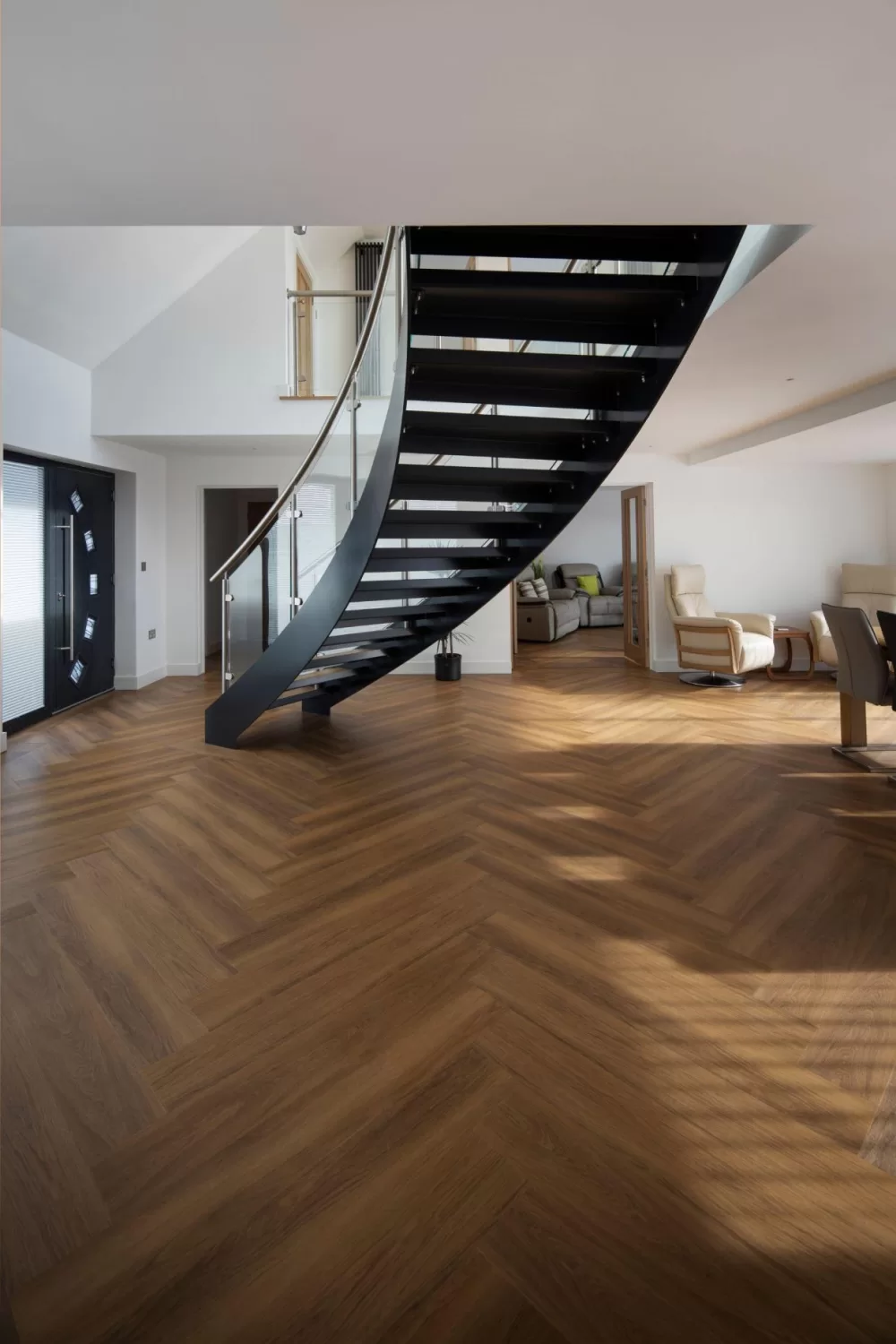

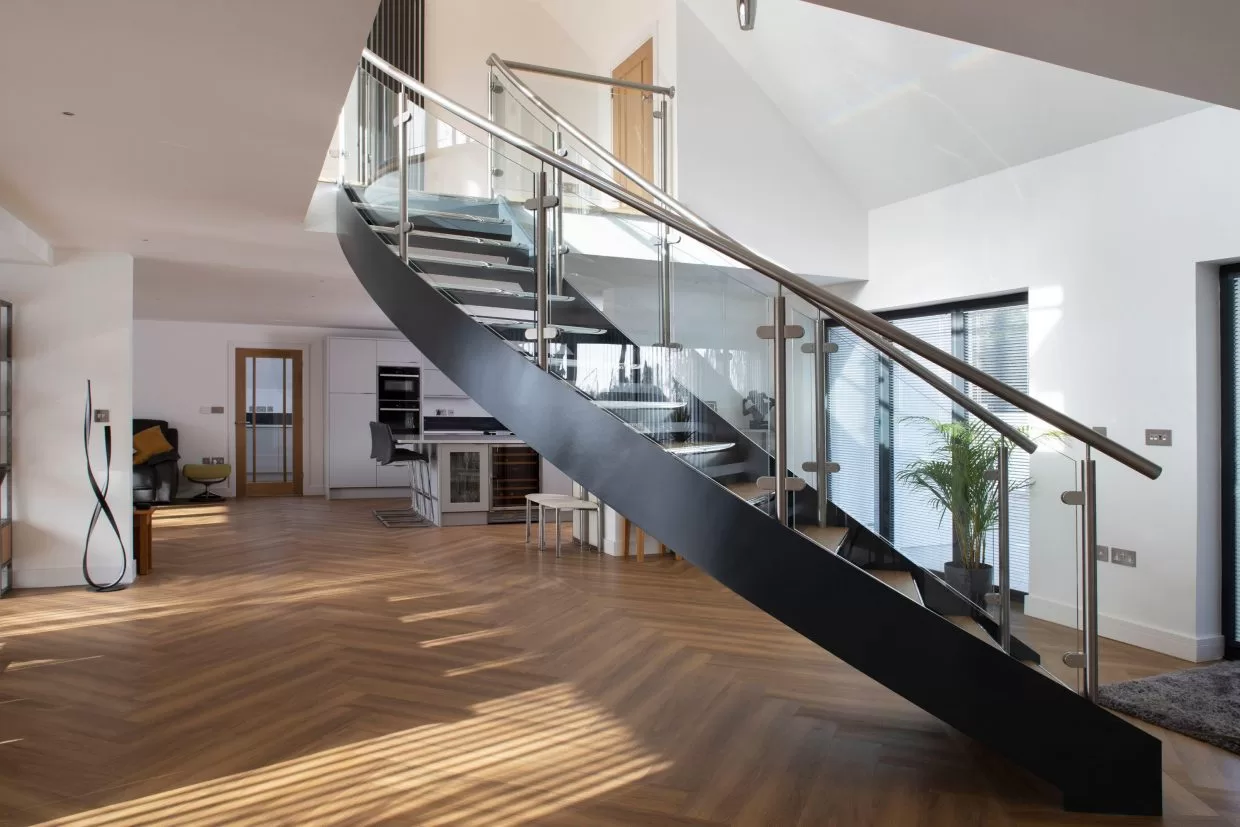

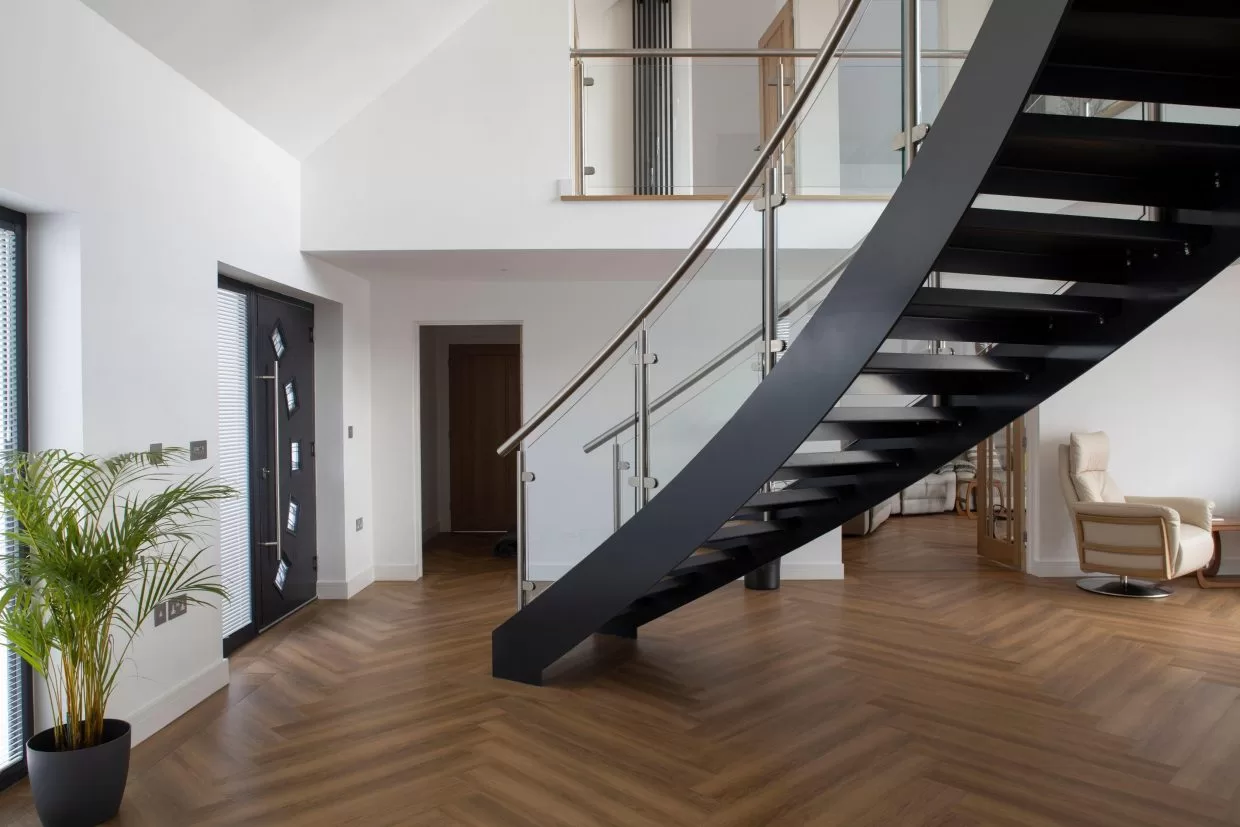

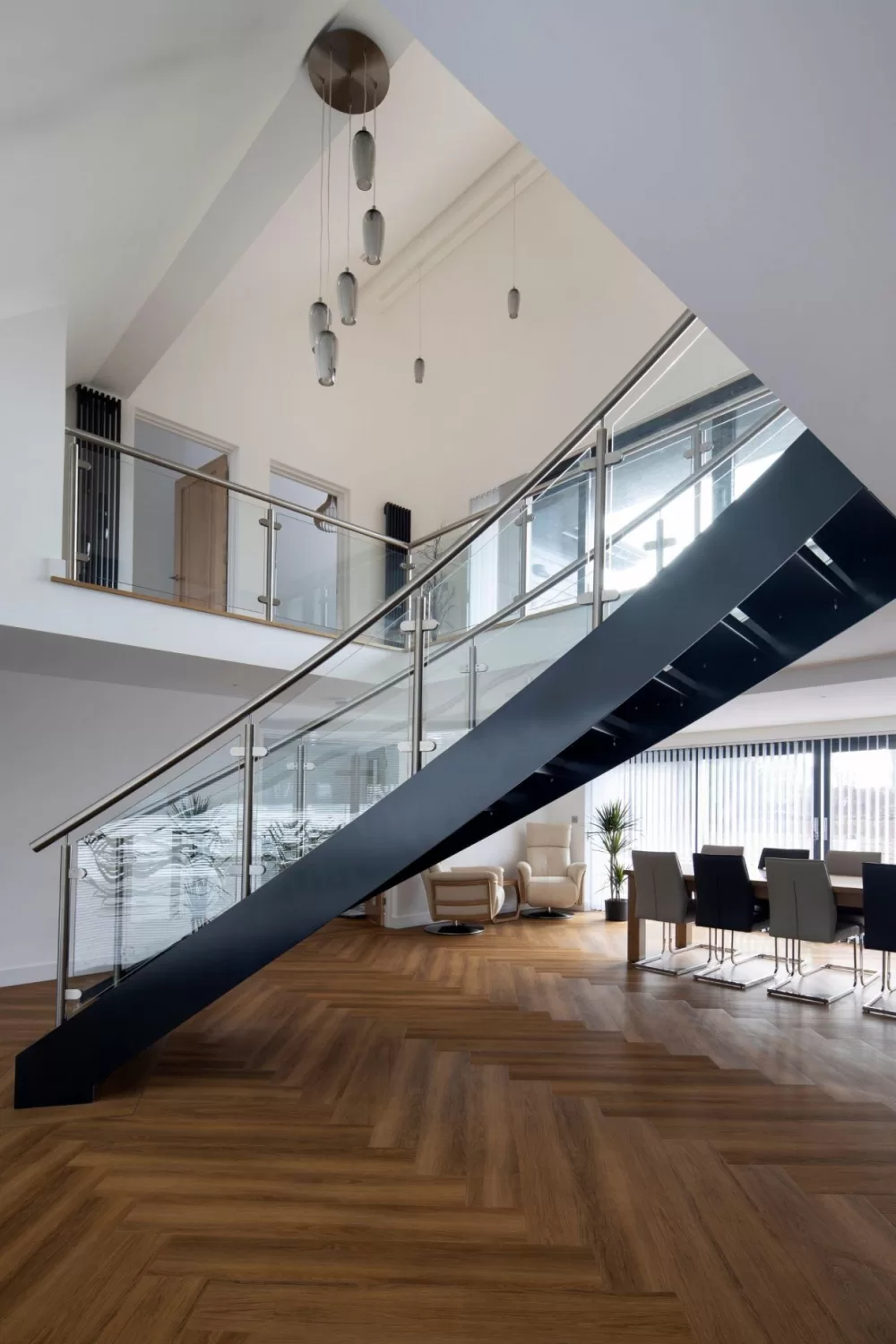

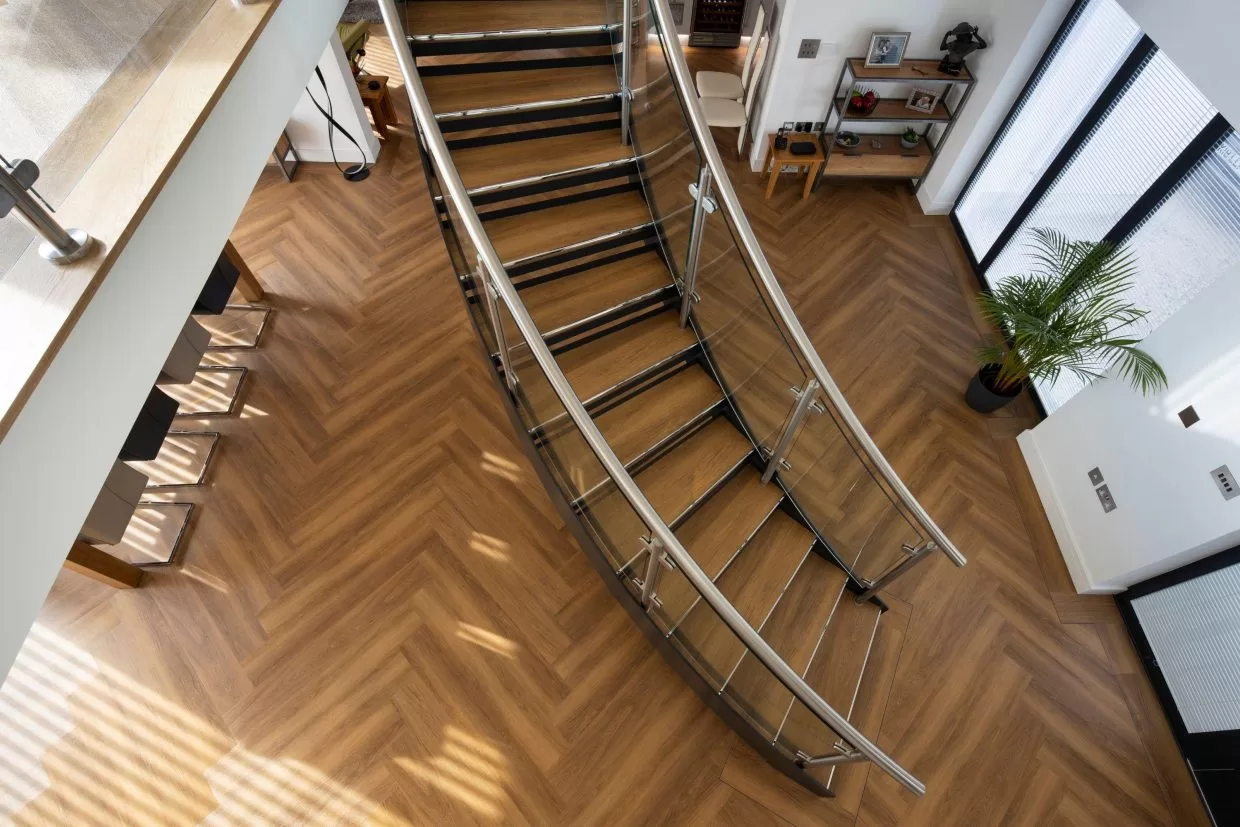

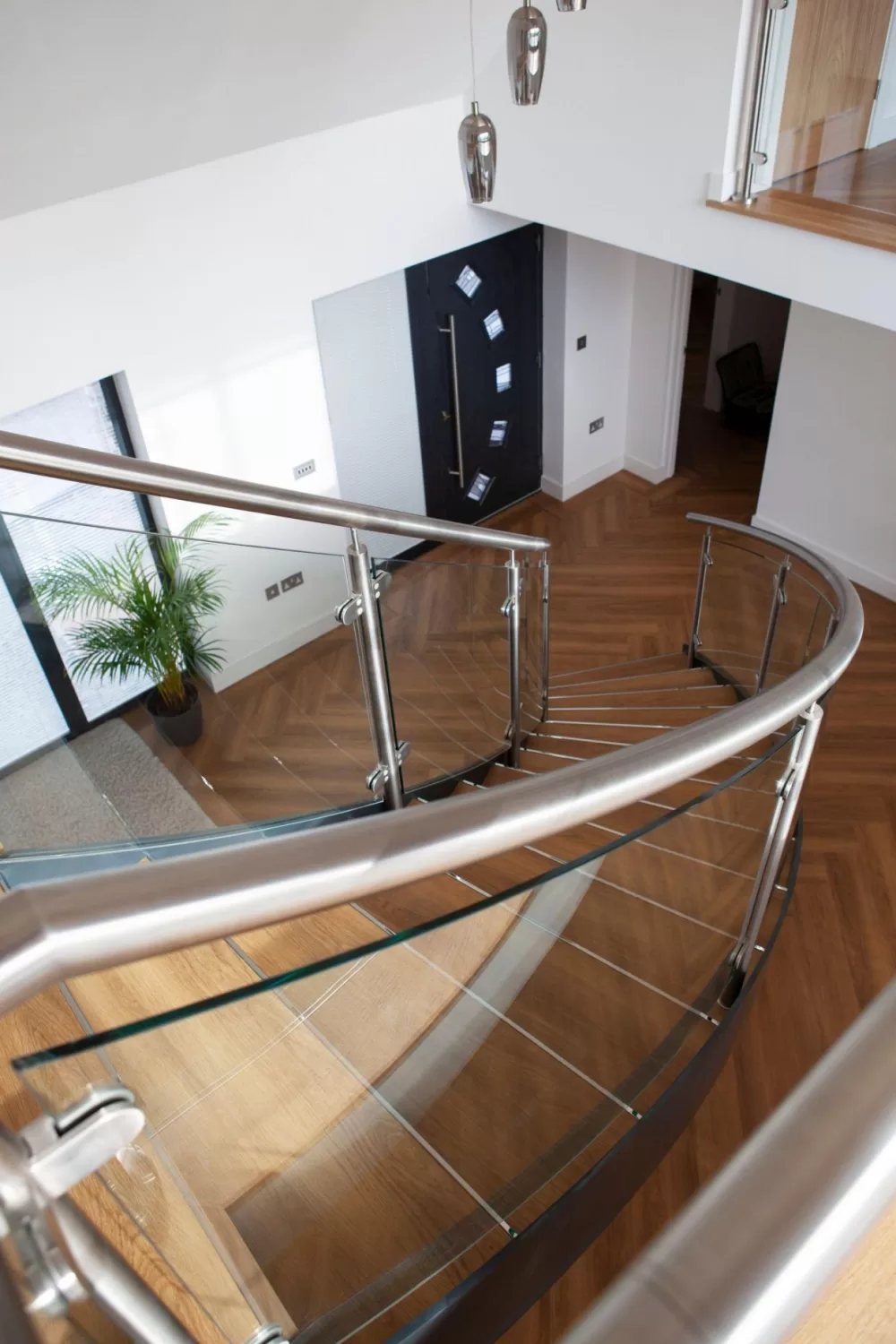

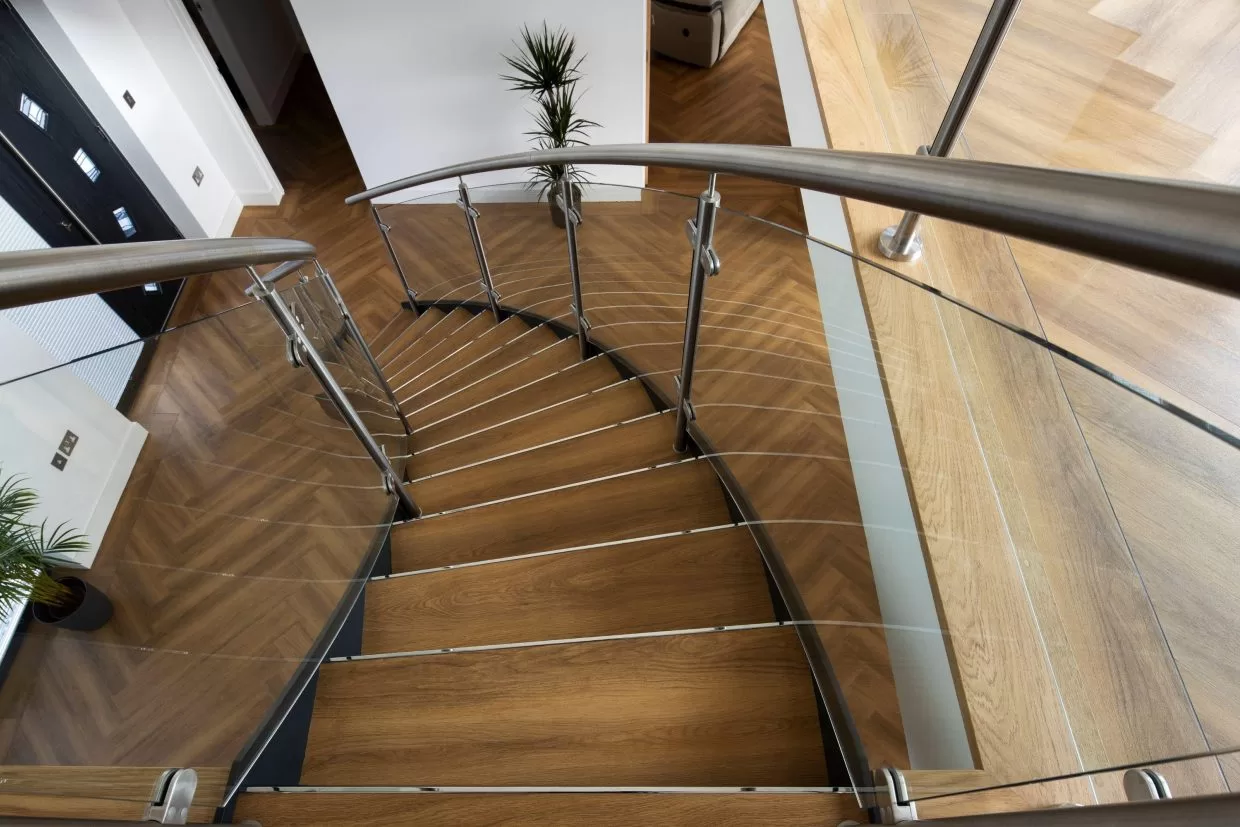

The curved or helical staircase design was fabricated in steel with powder coated treads and wet painted stringers. These were painted in Anthracite Grey RAL 7016. The treads have an Amtico vinyl finish which colour matched to the rest of the flooring throughout the house. The staircase is enhanced by a toughened glass panel balustrade with a tubular satin polished stainless-steel handrail. The theme is continued by the matching balustrade to the stairwell and landing area.

One unusual aspect is that the treads are bolted to the stringers as part of the design rather than welded in place. This creates an interesting visual feature.
